Product Dimensions 18"h x 54"w x 24"d

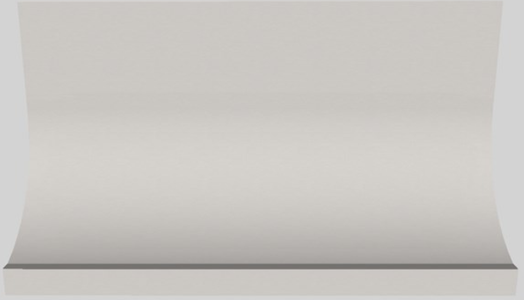

Classic design of this wall mount fits any kitchen.Read More
Choose vertical ends that are perfect for installation between cabinets, or concave ends for a French Country look. Heat lamps may also be added to selected models. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish (painted, stainless steel, real brass, real copper, or hammered copper). Recommended mounting height is 30" above the cooking surface. Matching wall mount duct covers (sold separately) are available in standard sizes for 8', 9', and 10' ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit.
*Special Notes: LED lights. WBAR warming light bar is available on selected models.
General Specs | |
| Width (in.) | 54 |
| Height (in.) | 18 |
| Duct Size (in.) | 8 |
| Depth (in.) | 24 |
| Color | Stainless Steel |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 54 |
| Maximum CFM | 600 |
| Sones Rating | 6.5 |
| Voltage | 115 |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
Dimensions | |
| Max Height Above Cooktop: | 30 |
Other | |
| Number of Lights: | 4 |
| Sones (Noise Level) Rating: | 6.5 |
