Product Dimensions 14.37"h x 36"w x 24"d

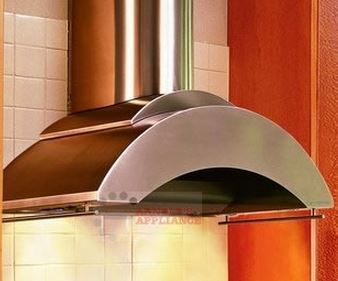

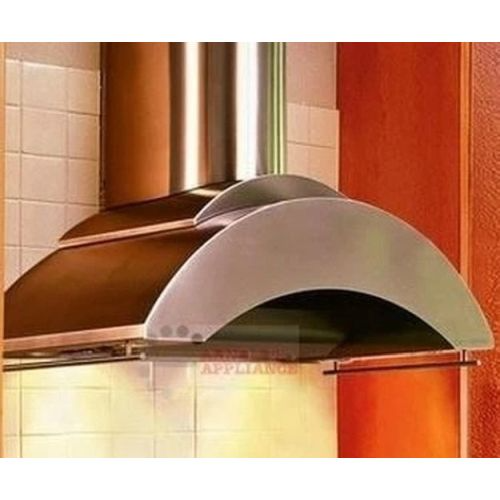

This wall mounted range hood with glass accents is designed for use over most professional-style cooking equipment. Fixed length stainless steel rail is standard on this model. Hood only available in stainless steel. Shown with matching wall mount duct cover (sold separately), available in standard sizes for 7', 8', and 9' ceiling heights or in custom sizes.Read More
Our patented technology keeps your kitchen running smoothly.
The patented Magic Lung® blower system sets Vent-A-Hood® apart.
You shouldn't settle for anything less than the Magic Lung® because it is quite, efficient, easy-cleaning, fire-safe, and powerful.
Vent-A-Hood's® Magic Lung® "multi-blower technology" allows CFM to double, triple, or quadruple with very little effect on sound levels.
Standard in all models. 50-watt halogen lights come with a dual switch for dimming to 25 watts. Bulbs included. For hoods 24" to 41" wide, two lights; 42" to 53" wide, three lights; 54" to 66" wide, four lights. Each island hood has four halogen lights— one in each corner.
600 CFM
Equivalent to 900 CFM power
Halogen lighting
Quietest hood in the industry
Available in several finish options
Mounts 30" above cooking surface
Fits 8" round duct
Available In Various Colors
The warranty for Vent-A-Hood® K-Series products is one year
The warranty does not cover: freight damage, blower wheel damage, light bulbs, damage or malfunction caused by poor installation, incidental or consequential damage, commercial application, misapplication or modification of or to any part of the Vent-A-Hood® product
General Specs | |
| Color | Custom |
| Color-Finish Name | Panel Ready |
| Color/Finish Name | Panel Ready |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ducted |
| Duct Size (in.) | 8 |
| Bulb Type | Halogen |
| Sones Rating | 6.5 |
| Noise Level (Sones) | Standard - (High) |
| Maximum CFM | 600 |
| Range Hood Features | Light |
| Smart Compatible | No |
| Filter Indicator Light | No |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 36 |
| Width (in.) | 36 |
| Height (in.) | 14.37 |
| Depth (in.) | 24 |
| Height Above Cooktop | 30 |
| Height Above Cooktop Centimeter | 76.20 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Collection | Contemporary Series |
| Manufacturer Warranty | 1 Year |
| Voltage | 115 |
| Positioning | Stationary |
Construction | |
| Chimney: | Fixed |
Dimensions | |
| Max Height Above Cooktop: | 30 |
| Min Height Above Cooktop: | 30 |
Display | |
| Controls: | Mechanical |
Other | |
| Number of Lights: | 4 |
| Air Mover Type(s): | Squirrel Cage |
| Air Mover(s) Speed: | 1550 |
| Number of Air Movers: | 2 |
